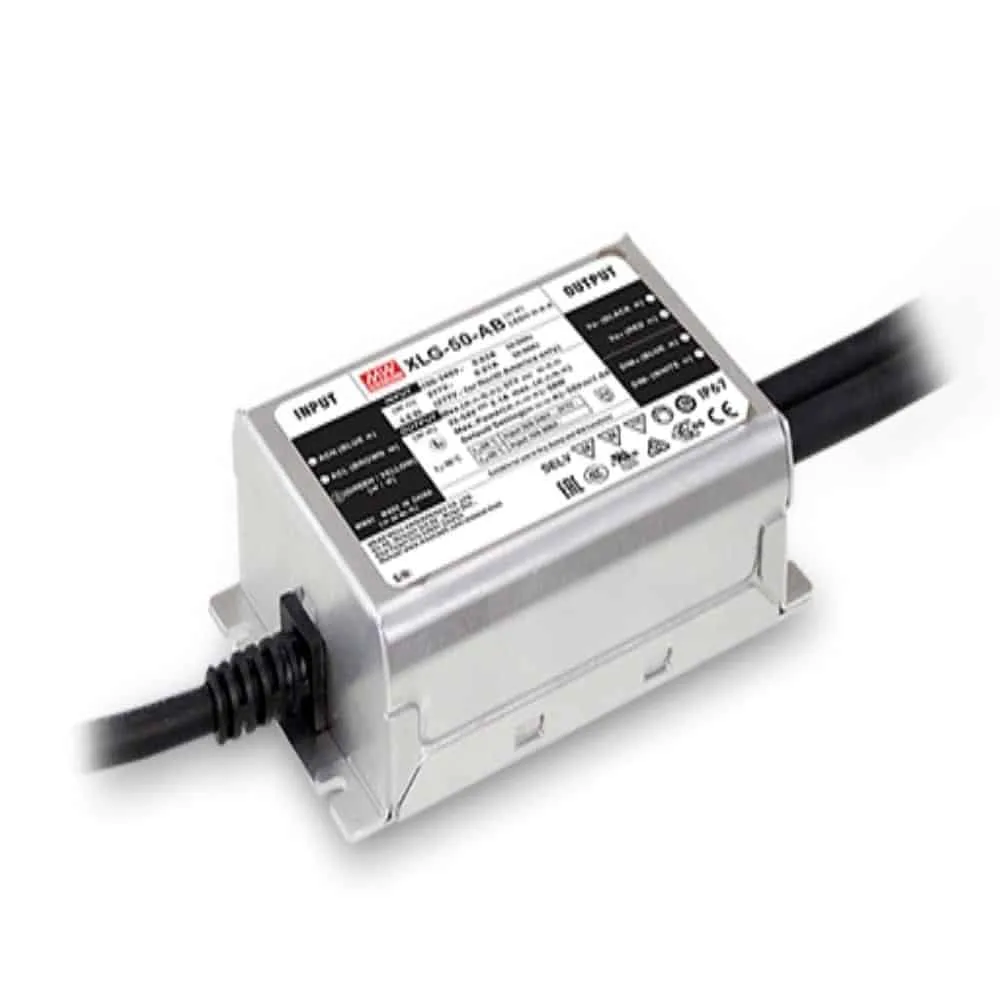

XLG-50-AB Mean Well LED Driver +22~54 VDC 530~2100mA
167.00 ر.س
LED Driver / Power Supply
+22~54VDC 530~2100mA
Available on backorder
Description
LED Driver / Power Supply
Brand: Mean Well
Model: XLG-50-AB
output: +22~54 VDC 530~2100mA
Wide input range 100~305VAC (90~305VAC for XLG-20)
Constant power mode with adjustable output current (Constant current mode for XLG-20)
Built-in active PFC function and Efficiency up to 90%
Dimming functions with 3 in 1 (AB type)
Protections: Short circuit/ Over voltage/ Over temperature
Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
Datasheet:
Additional information
| Weight | 0.5125 kg |
|---|---|
| Dimensions | 10.5 × 6.3 × 3 cm |
| Brand |
Mean Well |
| Input Voltage (VAC) |
90~305 |
| IP Rating |
IP 67 |
| Model |
XLG-50-AB |
| Output Current (A) |
530~2100mA |
| Output Power (W) |
50 |
| Output Voltage (VDC) |
+22~54 |
| Product Dimension (LxWxH) (mm) |
105x63x30 |
| Product Weight (kg) |
0.41 |
| ROHS |
ROHS |
| Safety |
BIS ,CB ,CCC ,CE ,CUL ,EAC ,ENEC ,KC ,NOM ,RCM ,TUV PSE |
| Series |
XLG |
| Shape |
LED Driver |
| LED Driver Type |
Constant Current ,Constant power |
| Technology |
AC/DC |
