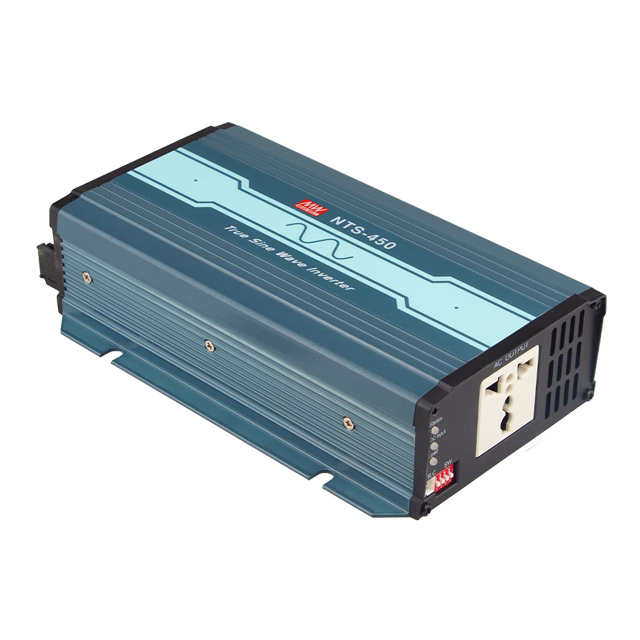

NTS-450-248UN Mean Well DC/AC Power Inverter 450W 48VDC 230VAC
611.00 ر.س
DC/AC Power Inverter
450W 48VDC 230VAC
Available on backorder
Description
NTS-450-248UN Mean Well DC/AC Power Inverter 450W 48VDC 230VAC
Brand: Mean Well
Model: NTS-450-248UN
input: 48 VDC
output: 230 VAC
DC-AC pure since wave output (THD<3%)
Convection cooled fanless design, high efficiency up to 93%
Built-in DIP switches to adjust AC output voltage, frequency, and work mode
Multiple intelligent protection functions:
- DC input side: reverse polarity, under voltage, over voltage protections
- AC output side: short circuit, overload, over temperature protections
Datasheet:
Specifications
| Shipping Weight | 1.625 kg |
|---|---|
| Brand |
Mean Well |
| Series |
NTS |
| Model |
NTS-450-248UN |
| Technology |
DC/AC |
| Input Voltage (VDC) |
48 |
| Input Voltage range (VDC) |
40~66 |
| Output Voltage (VAC) |
230 |
| Output Voltage options (VAC) |
selectable 200-220-230-240 |
| Output Power (W) |
450 |
| AC Charger (A) |
– |
| Solar Charger (A) |
– |
| Solar Input range (VDC) |
1 |
| Solar Charger Type |
– |
| Shape |
Enclosed |
| Product Weight (kg) |
10.4 |
| IP Rating |
not assigned |
| Safety |
CB ,CE ,Derka (橫式) ,EAC ,FCC ,RCM |
| Product Dimension (LxWxH) (mm) |
210x130x55 |
Datasheet
