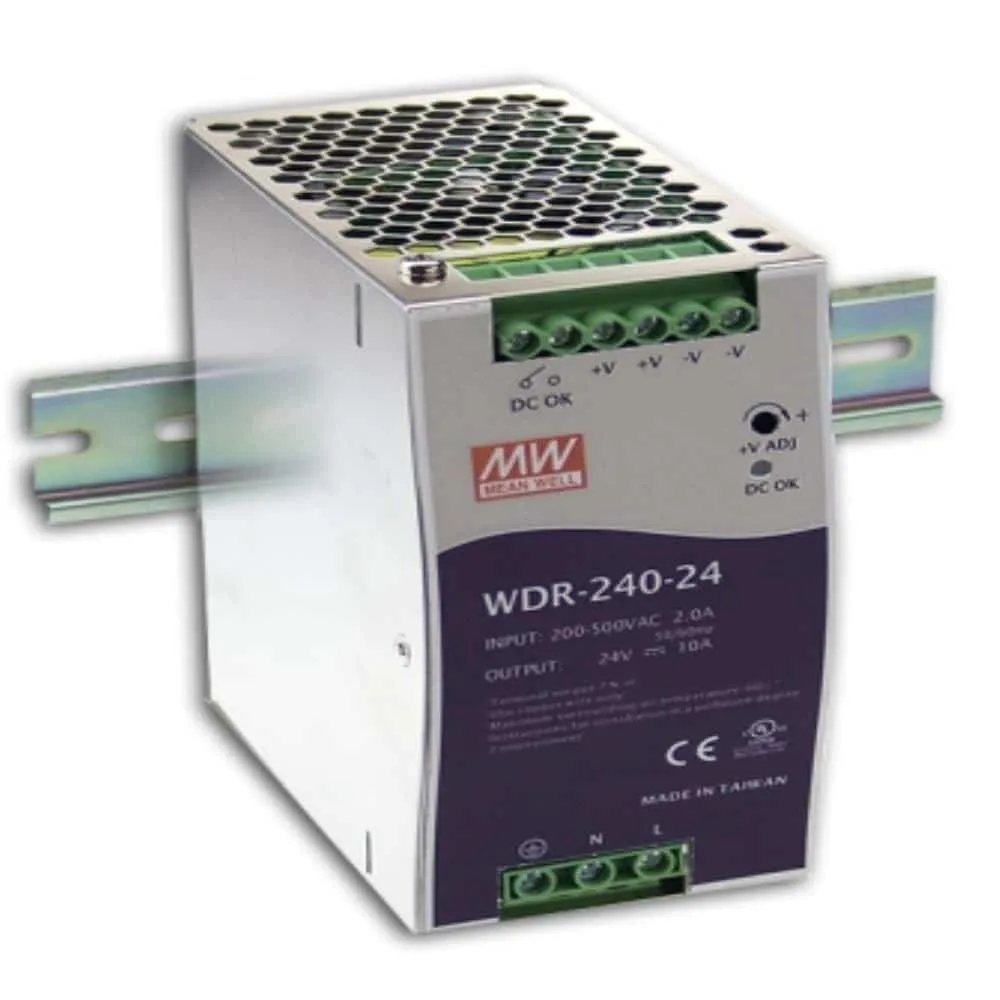

WDR-240-24 Mean Well Power Supply 24 VDC 10A Din Rail
890.40 ر.س
Power Supply
24VDC 10A
Available on backorder
Description
DIN Rail Power Supply
Brand: Mean Well
Model: WDR-240-24
output: 24 VDC 10A
Metal case, slim size
1∅ and 2∅ , 180~550VAC wide input
High efficiency up to 93%
Built-in active PFC function (240W & 480W)
Assemble on industrial rail TS-35 / 7.5 or 18
Built-in DC OK relay contact
Datasheet:
Additional information
| Weight | 1.3125 kg |
|---|---|
| Dimensions | 6.3 × 12.52 × 11.35 cm |
| Brand |
Mean Well |
| Input Voltage (VAC) |
180~550 |
| IP Rating |
not assigned |
| Model |
WDR-240-24 |
| Output Current (A) |
10A |
| Output Power (W) |
240 |
| Output Voltage (VDC) |
24 |
| Product Dimension (LxWxH) (mm) |
63×125.2×113.5 |
| Product Weight (kg) |
1.05 |
| ROHS |
ROHS |
| Safety |
CB ,CE ,CUL listed ,EAC |
| Series |
WDR |
| Shape |
DIN Rail |
| Technology |
AC/DC |
