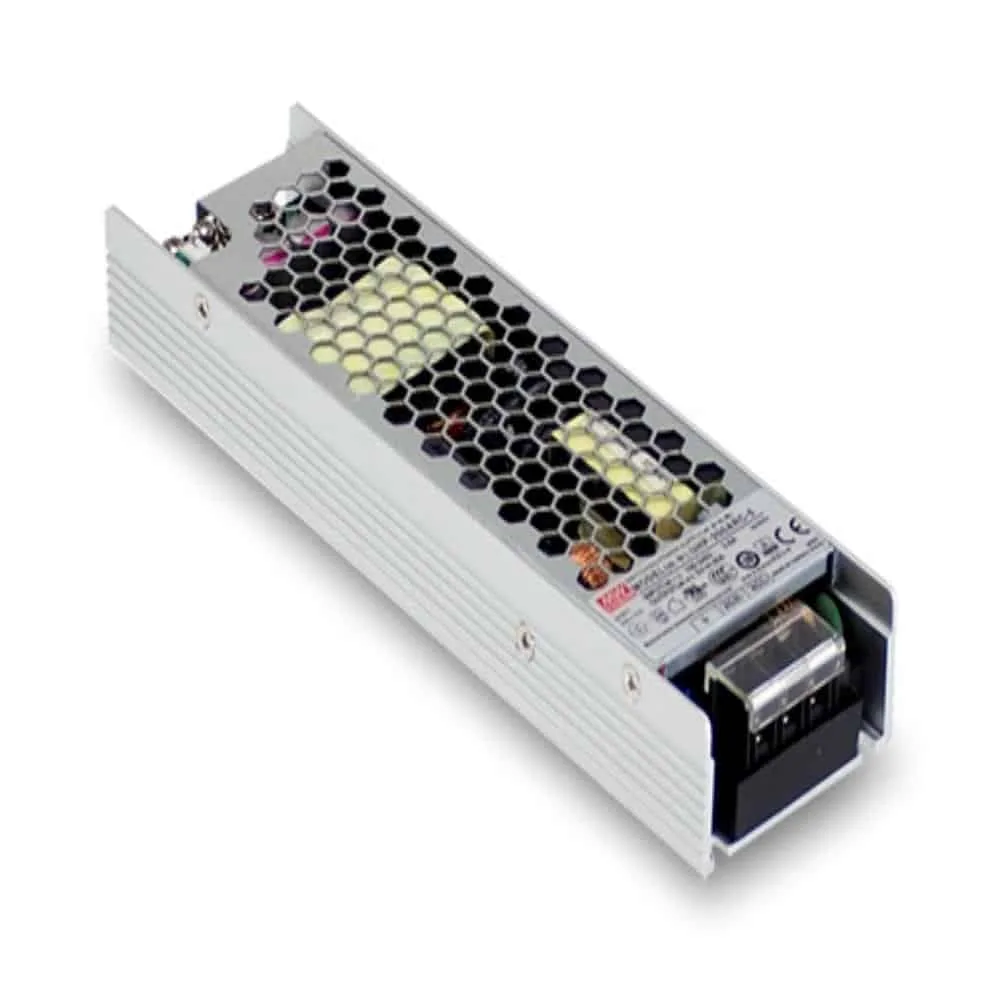

UHP-200-4.2 Mean Well Power Supply 4.2 VDC 40A
308.00 ر.س
Power Supply
4.2VDC 40A
Available on backorder
Description
Enclosed Power Supply
Brand: Mean Well
Model: UHP-200-4.2
output: 4.2 VDC 40A
Slim and Low profile
Fanless design,free air convection
Built-in active PFC function150%
peak load capability(100ms)
High voltage output available for HV type
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter
Datasheet:
Additional information
| Weight | 0.575 kg |
|---|---|
| Dimensions | 19.4 × 5.5 × 2.6 cm |
| Brand |
Mean Well |
| Input Voltage (VAC) |
90~264 |
| IP Rating |
not assigned |
| Model |
UHP-200-4.2 |
| Output Current (A) |
40A |
| Output Power (W) |
168 |
| Output Voltage (VDC) |
4.2 |
| Product Dimension (LxWxH) (mm) |
194x55x26 |
| Product Weight (kg) |
0.46 |
| ROHS |
ROHS |
| Safety |
CB ,CE ,CUL ,EAC ,TUV-62368-1 |
| Series |
UHP |
| Shape |
Enclosed |
| Technology |
AC/DC |
