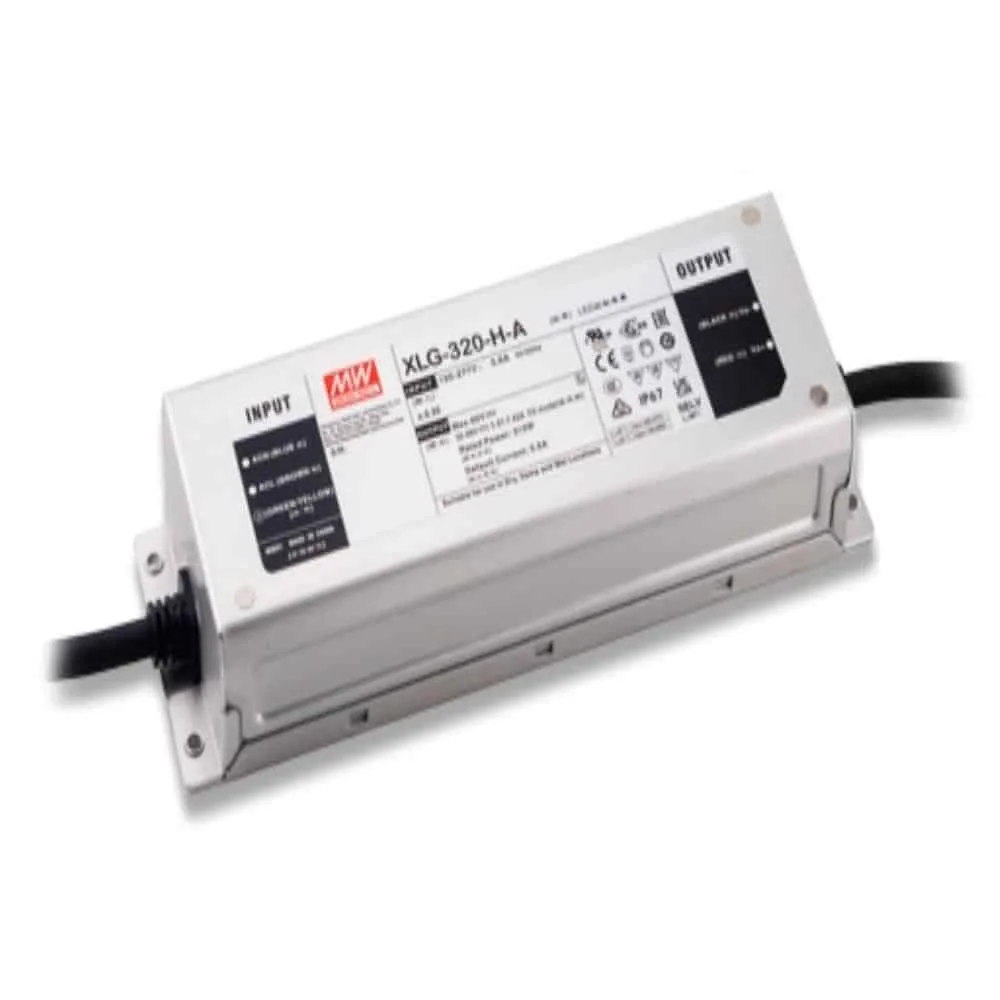

XLG-320-H-A Mean Well LED Driver +30~56 VDC 2800~7420mA
438.00 ر.س
LED Driver / Power Supply
+30~56VDC 2800~7420mA
Available on backorder
Description
LED Driver / Power Supply
Brand: Mean Well
Model: XLG-320-H-A
output: +30~56 VDC 2800~7420mA
Wide input range 100~305VAC (90~305VAC for XLG-20)
Constant power mode with adjustable output current (Constant current mode for XLG-20)
Built-in active PFC function and Efficiency up to 90%
Dimming functions with 3 in 1 (AB type)
Protections: Short circuit/ Over voltage/ Over temperature
Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
Datasheet:
Specifications
| Shipping Weight | 1.8 kg |
|---|---|
| Dimensions | 24.6 × 7.7 × 3.95 cm |
| Brand | Mean Well |
| Input Voltage (VAC) | 100~305 |
| IP Rating | IP 67 |
| Model | XLG-320-H-A |
| Output Current (A) | 2800~7420mA |
| Output Power (W) | 312 |
| Output Voltage (VDC) | +30~56 |
| Product Dimension (LxWxH) (mm) | 246x77x39.5 |
| Product Weight (kg) | 1.44 |
| ROHS | ROHS |
| Safety | BIS, CB, CCC, CE, CUL, EAC, ENEC, KC, NOM, RCM, TUV PSE |
| Series | XLG |
| Shape | LED Driver |
| LED Driver Type | Constant Current, Constant power |
| Technology | AC/DC |
